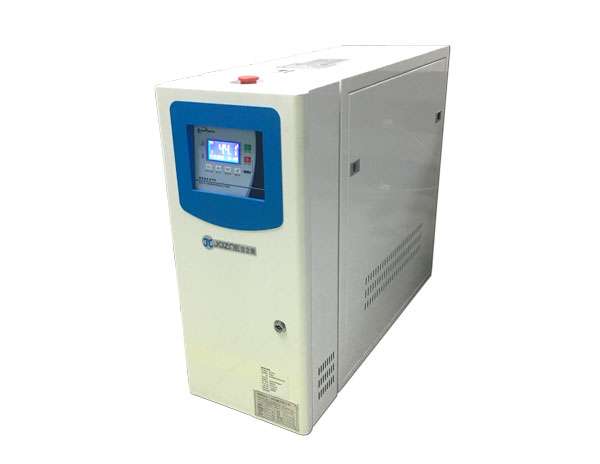

180℃高溫水溫機
High temp water temperature machine of 180℃,
Optical special mold temperature machine
特點 :
●歐美最先進安全的雙泵浦流程結構設計. ●裝有管路防爆裝置.
●溫度控制範圍:冷卻水溫+20℃→180℃. ●系統壓力過載自動泄壓
●原裝進口微電腦控溫器.精度±0.1℃. ●自動補水系統.
●意大利『NU.ER.T.』或SPECK泵浦. ●開機自動排氣功能．
●電器採用日本[FUJI]、[OMRON]、意大利[ODE]、[OR]. ●加熱功率切換功能.
●分離式控制箱設計，延長電氣零件壽命. ●BY-PASS洩壓回路.
●316不銹鋼一體成型無縫管，減少管阻及鏽垢． ●模具回水功能(選購).
●完善的安全保護,故障顯示,維修保養無需專業人員。 ●回水溫度顯示(選購).
應用範圍：精密射出成型模具控溫、導光板、光學鏡片、光碟、連接器、押出成型、輥輪加熱、壓鑄等.
APPLICATION: Injection mould temp. controller、OPtical lens、CD、DVD、connector injection extrusion screw,barrels、calenders
Features：
●Inside pipe with safety explode-proof valve. ●Switchover of heating power.
●Auto supply water system. ●Auto relief when over-pressure．
●Automatic exhaust function as starting up the machine. ●BY-PASS circuit.
●The use of Italian 『NU.ER.T.』SPECK Water booster pump. ●Thermometer for return water(option).
●Electric parts use[FUJI]、[OMRON]、[ODE]、[OR]、[R.K.C]. ●Clean mold (option)
●Range of temperature control:room temp.+20℃~150℃/180℃,precision±1℃.
●Security in Europe and America the most advanced dual-flow pump structural design.
●Isolated electric box for longer services lives of electric appliances.
●316 stainless steel integrated pipelines for less pipe resistance and rust.
●Complete with safety protection and error indication system for easy operation.
規格表 SPECIFICATIONS
機型 Model | 單位UNIT | JWT-150-1 | JWT-150-2 | JWH-180-1 | JWH-180-2 | JWH-180-3 | JWH-180-4 | ||
溫控範圍 Control range | ℃ | 冷卻水溫+20℃～150℃ | 冷卻水溫+20℃～180℃ | ||||||
溫控精度 Temp.control accuracy | ℃ | 雙組P.I.D ±1℃ | 雙組P.I.D ±0.5℃ | ||||||
電源 Power supply | AC | 3∮380V 50HZ or OTHER | |||||||
傳熱媒體 Medium | 水 CLEAN WATER | ||||||||
冷卻方式 Cooling method | 間接冷卻（高效板式冷卻器） INDIRECT COOLING | ||||||||
加熱能量 Heater capacity | KW | 12 | 12 | 12 | 18 | 24 | 36 | ||
泵浦馬力 Motor capacity | HP | 1 | 2 | 1 | 2 | 3 | 4 | ||
泵浦最大流量 Pump max flow rate | L/MIN | 135 | 160 | 165 | 235 | 315 | 400 | ||
系統最大壓力 System max.pressure | KG/CM2 | 6 | 6 | 8 | 8 | 8 | 9 | ||
警報及保護功能 Alertfunction | 缺逆相/缺水/超溫/過載/反轉/高壓pump reversal/water shortage/Overheating/pump overload/high voltage | ||||||||
循環水管徑 Circulation water pipe | INCH | 3/8×4 | 3/8×6 | 3/8×4 | 3/8×6 | 1 | 1-2 | ||
冷卻水管徑 Cooling pipe dimension | INCH | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | ||
外型尺寸 LxWxH | CM | 80×34×89 | 80×34×89 | 80×34×89 | 80×34×89 | 93×40×100 | 80×34×89 | ||
重量 Weight | KG | 70 | 80 | 80 | 95 | 110 | 95 | ||
●以上規格如有變更,恕不另行通知,以實機為準. ●特殊規格及多機一體機型可另設計製造.Special design request.
